Knotted vs Knotless Aramid Anti-Drone Nets: Critical Gap in High-Impact Resistance

Released by Taizhou Lift Sling Net & Belt Factory

Introduction

Can knotless aramid anti-drone nets reliably block high-speed drone impacts? This question has troubled security procurement teams and anti-drone system integrators for years. Many buyers mistakenly equate all aramid mesh with strong interception capacity, ignoring fundamental structural defects of knotless weaving under violent dynamic impact. This article analyzes the huge performance gap between knotless and knotted aramid anti-drone nets, with authoritative breaking load test data from Taizhou Lifute Rope, Net & Belt Factory as solid proof.

Structural Defects of Knotless Aramid Anti-Drone Nets

Knotless aramid anti-drone nets are fabricated via continuous knotless warp knitting. Para-aramid fiber features ultra-low elongation at break (only 2%–4%), which creates a fatal flaw under instantaneous heavy impact.When a drone slams into the net, tension concentrates at every mesh intersection. Without locking knots to separate and disperse stress, crossed aramid strands rub and shear against one another violently. Mutual fiber cutting occurs instantly at cross points, causing premature strand rupture.Under high kinetic impact, multiple yarn strands cannot jointly bear loads and share impact energy as an integrated whole. The mesh fails to form a unified force-bearing structure, resulting in severely limited overall energy absorption capacity. In short, knotless aramid netting cannot deliver robust interception performance and fails to withstand powerful drone collisions.

Why Knotted Braided Rope Nets Outperform Knotless Variants

Only heavy-duty nets constructed from fully braided knotted aramid ropes deliver genuine anti-impact and interception capability. The knotted locking structure fixes each mesh intersection firmly: stress transfers evenly across adjacent rope strands, avoiding concentrated shear friction between fibers. Multiple braided ropes share impact loads synchronously, fully utilizing aramid’s ultra-high tensile strength to absorb drone kinetic energy without rapid cross-point cutting failure.

Authoritative Breaking Strength Data from Taizhou Lift Sling Net & Belt Factory

Our factory’s lab tensile testing records for braided knotted aramid ropes (core raw material for anti-drone intercept nets):

1. 6mm braided aramid rope: Minimum breaking load = 26.6 kN

2. 8mm braided aramid rope: Minimum breaking load = 47.8 kN

3. 10mm braided aramid rope: Minimum breaking load = 68.5 kN

These stable, high breaking load figures are completely unachievable by standard knotless aramid netting of the same mesh size and material weight. Knotless mesh relies on thin single-layer warp yarns instead of thick multi-strand braided ropes; its individual filament tensile capacity is far inferior to integrated braided rope, leading to much lower overall anti-impact limits.

Practical Anti-Drone Application Comparison

1. Low-speed, lightweight consumer drones: Thin knotless aramid nets may temporarily trap tiny low-speed aircraft, yet cross-point fiber cutting will quickly create mesh holes after repeated strikes, losing interception function rapidly.

2. Heavy industrial, modified, high-speed rogue drones: Knotless aramid nets will tear instantly on first collision. Crossed strands shear and snap, letting drones break through the barrier without obstruction, bringing severe safety risks to factories, power stations, airports and military zones.

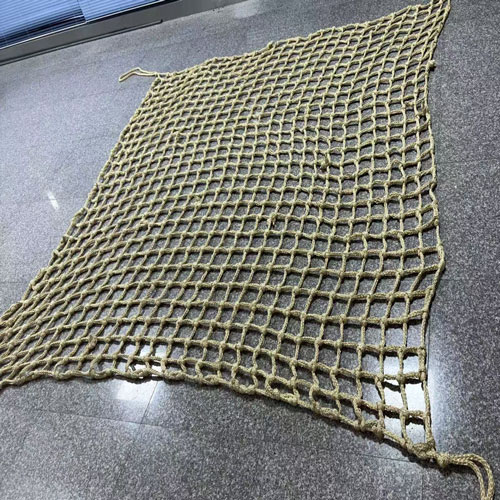

3. Knotted braided aramid rope nets (Lifute’s mainstream product): Thick multi-strand braided ropes locked by tight knots resist cross-cutting effectively. The whole mesh distributes impact force uniformly, intercepting large, fast-moving drones stably without instant rupture. The service life under continuous impact is 3–5 times longer than knotless alternatives.

Conclusion & Professional Suggestion

For formal anti-drone security deployment targeting high-speed, heavy-duty illegal drones, knotless aramid nets cannot meet standard interception requirements due to inherent low elongation and cross-strand shear failure.Taizhou Lifute Rope, Net & Belt Factory recommends clients select knotted anti-drone nets woven with thick braided aramid ropes (6mm, 8mm, 10mm specifications available). Our products pass full breaking load inspection batch by batch, with complete test reports supplied. We support customized mesh size, net dimension and edge reinforcement for military, civil airport, energy plant and critical infrastructure anti-drone defense projects, providing reliable long-term interception protection against drone intrusion.

Taizhou Lift Sling Net & Belt Factory Professional Manufacturer of High-Strength Aramid Anti-Drone Interception Nets
