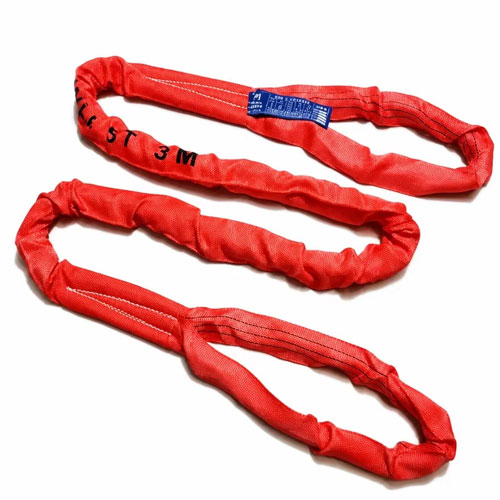

Eye and Eye round sling

An eye and eye round sling (double eye round sling) is a round-section synthetic lifting sling with two sewn soft eyes at both ends. Its load-bearing core is formed by continuous filament polyester yarns enclosed in a woven polyester cover; each end is folded back and closed with heavy-duty multiple-row stitching to form a soft eye, giving the sling two defined attachment points.

Compared with an endless loop, the round sling with eyes can be hooked directly onto crane hooks or connected to shackles quickly and securely, without threading the whole sling through the hook. The round body stays soft and conformable, spreading pressure over a large contact area so delicate and irregular loads are not damaged. They are widely used in heavy machinery, steel structures, wind power, ports & marine, oil & gas and general industrial lifting.

Custom WLL from 1T to 100T (above on request), any length and customizable eye size are available, with OEM/ODM service supported.

2. Key Features & Benefits

Two Sewn Soft EyesDefined attachment points at both ends — hook directly onto crane hooks or connect to shackles for fast, secure rigging.

High Strength-to-Weight RatioLighter at equal capacity than chain or wire rope, reducing operator fatigue.

Soft & ConformableWraps irregular or fragile loads with a large contact area and low surface pressure, without damaging the load.

Metal-Free BodyNo metal parts on the sling body — safe for precision equipment, painted surfaces and delicate goods.

Color-CodedWLL identified by standard EN 1492-2 color coding for clear, easy capacity management.

Customizable EyesEye size and eye length made to order to match your hooks, shackles or lifting beams.

Wide Capacity RangeWLL 1T-100T and above with custom length; multiple plies for higher capacities.

Optional ProtectionRubber or abrasion-resistant sleeves available for extra wear and cut resistance.

3. Construction

4. Technical Specifications

Note: diameters are typical values; the actual product is subject to drawings/samples. Length and eye size are made to order (length commonly 0.5m-20m). WLL above 100T on request.

General Parameters

5. Hitch Modes & Rated Load

Note: in multi-leg lifting, the load per leg increases as the sling angle increases. Always calculate per EN 1492-2 or contact our technical team to confirm a safe lifting plan.

6. Applications

• Heavy and construction machinery

• Steel structures and precast concrete

• Wind power equipment

• Ports, marine and offshore operations

• Oil & gas, chemical and pipeline projects

• Precision and fragile loads

• Mining, metallurgy and power generation

• Warehousing and production line handling

7. Quality & Certifications

• Designed and manufactured to EN 1492-2 (Europe), ISO 7538 (international) and ASME B30.9 (US).

• Incoming material inspection: batch tensile sampling of polyester yarns, cover weight and abrasion tests.

• 100% final inspection: visual check, eye stitching verification, dimension measurement and fully traceable labels on every sling.

• Proof load tests at 1.5-2x WLL available with test certificates on request.

• Third-party inspection (SGS / BV / TUV) and certification documents (CE, ISO 9001) supported.

Note: certifications listed above are general; the final certificate package is subject to the documents provided by our factory.

8. Inspection & Maintenance

Pre-Use Inspection

• Check the label: WLL, length, batch number and validity must be legible and complete.

• Check the eyes for broken or pulled stitches, fraying or distortion — the eyes are the most stressed parts.

• Check the cover for cuts, abrasion, fraying or exposed core yarns.

• Check for heat damage (melting, hardening) or chemical attack.

• Check that the eye size still fits the hook or shackle properly without jamming.

Discard Criteria (remove from service immediately if any occurs)

• Broken or exposed core, or major cover damage.

• Damaged eye stitching, torn eyes or deformed eye shape.

• Heat or chemical damage affecting strength.

• Missing or illegible label.

• After overload, shock loading or a lifting incident.

Usage & Storage

• Never knot the sling, drag it on the ground or exceed the rated WLL.

• Do not force the eye over an undersized hook tip; use a shackle if needed.

• Protect sharp edges with corner protectors or sleeves.

• Store in a dry place away from sunlight, chemicals and heat sources.

• Carry out periodic inspection and record keeping per EN/ASME standards.

9. Customization Services

• Custom WLL from 1T to 100T, above 100T on request.

• Flexible length, diameter, ply and protective sleeve options.

• Custom eye size and eye length to match your hooks or shackles.

• Custom color coding, printing and customer logos.

• Sampling, OEM/ODM and low MOQ available.

• Export packing (carton / wooden case / woven bag) and shipping marks as required.
