China Lifute Sling Group manufacture Webbing Sling,Flat webbing sling,Polyester Webbing Sling,Polyester Web Sling.
 | Polyester Webbing Sling Flat woven lifting slings for industrial, construction & marine rigging applications. EN 1492-1 Certified Safety Factor 7:1 WLL 1–30 Tons Eye & Eye China Lifute Sling Group manufactures polyester webbing slings, polyester web slings and polyester flat webbing slings. Heavy-duty flat woven slings with duplex, triplex & quadplex ply options, soft reinforced eyes, color-coded labels and 100% proof-load testing. Competitive wholesale pricing with fast global delivery. |

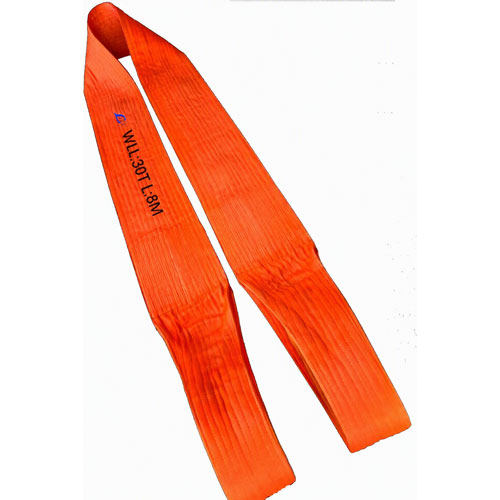

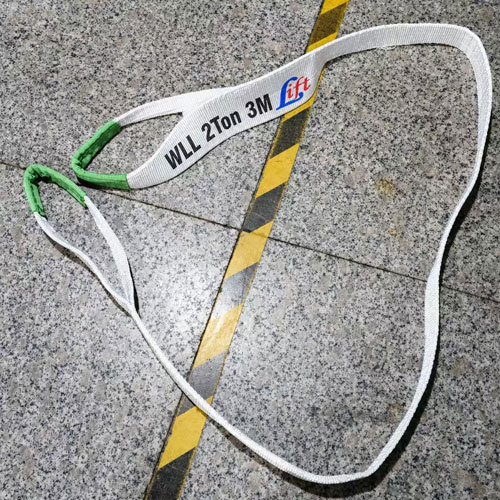

The polyester webbing sling — also referred to as a flat webbing sling, polyester lifting strap, synthetic web sling or eye & eye sling — is a high-strength, lightweight lifting device engineered from 100% high-tenacity polyester filament yarns woven into a flat, durable webbing construction. Unlike a round sling, the flat profile provides a wider load-bearing surface, making polyester webbing slings ideal for handling sharp-edged, flat-surfaced or finished loads where surface protection and stability are critical.
Our polyester webbing slings comply with EN 1492-1 (European Standard for flat woven webbing slings) and ASME B30.9, and are manufactured under a certified quality management system. Each sling is 100% proof-load tested at 2× its rated WLL and supplied with an individual serial-numbered test certificate, ensuring full traceability from raw material to final delivery.
Available in single-ply, duplex (2-ply), triplex (3-ply) and quadplex (4-ply) constructions with Working Load Limits from 1,000 kg to 30,000 kg (1 to 30 tons). Reinforced soft-eye loops at both ends provide secure attachment to crane hooks, shackles and lifting points without metal-to-load contact damage.
Low Elongation100% high-tenacity polyester webbing — elongation ≤3% at WLL, minimal stretch under load.
Even Load DistributionFlat woven profile spreads load pressure evenly — ideal for delicate, painted or polished surfaces.
Soft Reinforced EyesNo metal hardware at the ends — eliminates surface marring and spark risk.
Multi-Ply Options1 to 4 layers (single / duplex / triplex / quadplex) — optimal strength-to-flexibility ratio.
Color-Coded LabelsEN 1492-1 identification for instant, error-free WLL recognition at the worksite.
7:1 Safety FactorStandard, exceeds minimum regulatory requirements for general-purpose lifting.
Chemical ResistanceExcellent resistance to oils, greases, most acids and alkalis found on job sites.
Wide Temperature Range-40°C to +100°C without load derating; UV-stabilized for outdoor service.
LightweightUp to 80% lighter than equivalent-capacity chain or wire rope slings.
Traceable & TestedSerial-numbered label with CE marking, WLL, length and mfg. date; 100% proof-load tested at 2× WLL.
| Parameter | Specification | Reference Standard |
|---|---|---|
| Material | 100% High-Tenacity Polyester (PES) | EN 1492-1 |
| Construction | Single / Duplex / Triplex / Quadplex | EN 1492-1 |
| Safety Factor | 7:1 (standard); 6:1 & 8:1 on request | EN 1492-1 / ASME B30.9 |
| WLL Range | 1,000 kg – 30,000 kg (1–30 Tons) | — |
| Elongation at WLL | ≤3% | — |
| Breaking Strength | 7× WLL (minimum) | EN 1492-1 |
| End Fittings | Reinforced soft eyes (eye & eye standard) | — |
| Eye Length | Standard 300–500 mm; custom on request | — |
| Temperature Range | -40°C to +100°C | — |
| Webbing Width | 25 mm – 300 mm (depending on WLL & ply) | — |
| Color Identification | Label color-coded per EN 1492-1 | EN 1492-1 |
| Proof Load Test | 2× WLL (100% of production) | EN 1492-1 |
| Marking | Sewn-in label: WLL, serial No., length, CE, mfg. date | EN 1492-1 |
| Certification | CE, Test Certificate, EN 10204 3.1 available | — |
Standard WLL ratings for duplex (2-ply) polyester webbing slings. Higher WLL values are achievable with triplex or quadplex constructions. Custom capacities and effective lengths available on request.
| WLL (Tons) | WLL (kg) | Webbing Width | Ply |
|---|---|---|---|
| 1.0 | 1,000 | 25–30 mm | Duplex |
| 2.0 | 2,000 | 50–60 mm | Duplex |
| 3.0 | 3,000 | 60–75 mm | Duplex |
| 4.0 | 4,000 | 75–90 mm | Duplex |
| 5.0 | 5,000 | 90–100 mm | Duplex |
| 6.0 | 6,000 | 100–120 mm | Duplex |
| 8.0 | 8,000 | 120–150 mm | Duplex |
| 10.0 | 10,000 | 150–180 mm | Duplex |
| 12.0 | 12,000 | 180–200 mm | Triplex |
| 15.0 | 15,000 | 200–240 mm | Triplex |
| 20.0 | 20,000 | 240–300 mm | Quadplex |
| 25.0 | 25,000 | Custom | Quadplex |
| 30.0 | 30,000 | Custom | Quadplex |
Note: 25T and 30T WLL are available in quadplex construction. Contact our engineering team for non-standard sizing.
Polyester webbing slings support three standard hitch configurations. The effective WLL depends on the hitch type — always apply the correct load factor when planning a lift.
| Hitch Type | Load Factor | Eff. WLL (1T Sling) | Application Notes |
|---|---|---|---|
| Vertical (Straight) | 1.0 × WLL | 1,000 kg | Single-leg straight lift; sling vertical, load suspended directly below hook. |
| Choker Hitch | 0.8 × WLL | 800 kg | Sling wrapped around load, one eye passed through the other; choker angle ≤120°. |
| Basket Hitch (0°) | 2.0 × WLL | 2,000 kg | Both eyes on hook, sling cradles load; maximum capacity configuration, load must be balanced. |
| Basket Hitch (0–45°) | 1.4 × WLL | 1,400 kg | Two-leg basket with angle up to 45° from vertical; use spreader bar when possible. |
| Basket Hitch (45–60°) | 1.0 × WLL | 1,000 kg | Maximum basket angle 60° from vertical — do not exceed. |
| 2-Leg Bridle (0–45°) | 1.4 × WLL | 1,400 kg | Two independent slings on a master link; angle measured at the apex. |
| 2-Leg Bridle (45–60°) | 1.0 × WLL | 1,000 kg | Wider spread arrangement; verify sling length symmetry. |
WARNING: Always derate the WLL according to hitch type and angle. Choker angle must not exceed 120°. Basket/bridle angle must not exceed 60° from vertical. Never exceed rated capacity.
Multi-ply constructions balance strength, flexibility and cost. Choosing the correct ply ensures safe, efficient lifting without unnecessary bulk or expense.
| Ply | Typical WLL Range | Best Suited For |
|---|---|---|
| Single-Ply | 500 – 3,000 kg | Light-duty lifting, strapping, bundling, one-time-use applications. Maximum flexibility, lowest cost. |
| Duplex (2-Ply) | 1,000 – 10,000 kg | General-purpose construction, manufacturing, warehouse and logistics lifting. Optimal strength-to-flexibility balance. |
| Triplex (3-Ply) | 8,000 – 15,000 kg | Heavy industrial lifting, steel fabrication, precast concrete and pipe handling. Higher WLL with manageable flexibility. |
| Quadplex (4-Ply) | 15,000 – 30,000 kg | Extreme heavy-duty lifting, offshore and marine applications, wind turbine erection, heavy machinery installation. |
Polyester webbing slings are among the most widely used synthetic lifting devices across global industry sectors, wherever chain or wire rope slings are unsuitable.
Construction & Civil Engineering — steel beams, precast panels, rebar cages and formwork systems.
Steel Fabrication & Metalworking — plate steel, structural sections, pipes and coils without surface damage.
Marine, Offshore & Shipbuilding — shipyard lifting, dock-side cargo handling, barge loading and platform supply.
Oil, Gas & Petrochemical — pipe string handling, valve and flange installation, drilling equipment lifts.
Wind Energy — tower section, nacelle and blade handling during turbine assembly and maintenance.
Manufacturing & Assembly — production line handling, machine positioning, heavy component transfer.
Logistics, Warehousing & Transport — container loading, truck bed securing, palletized cargo.
Power Generation — generator stator and rotor lifts, transformer handling, substation equipment installation.
Automotive & Rail — vehicle body and chassis lifting, engine and transmission rigging.
Mining & Quarrying — equipment maintenance lifts, crusher component handling, conveyor installation.
Examine the full webbing length for cuts, tears, abrasion or broken stitching on body and eye loops.
Check for chemical attack indicators — discoloration, stiffening or surface flaking of the fibers.
Inspect for heat or friction damage — melting, glazing, charring or fused fibers.
Verify the identification label is present, legible, and the WLL matches your load and hitch.
Confirm eye loops are not stretched, deformed or frayed — discard if the shape is distorted.
Check the sling lies flat without kinks, knots or permanent twists from improper storage.
A competent person must carry out a detailed inspection at least every 6 months (or more frequently in harsh environments) per LOLER and ASME B30.9 requirements. Keep a written record: date and examiner, sling serial number and WLL, condition assessment, defects found, and pass/fail status with next examination date.
Store flat or hung on sling racks — never leave coiled on the floor or exposed to moisture.
Keep in a cool, dry, ventilated area away from direct sunlight, heat sources and chemicals.
Clean with mild soap and clean water only — never use chemical solvents or abrasive methods.
Do not drag slings over rough surfaces or sharp edges; use edge protectors when necessary.
Let wet or damp slings dry naturally before storage to prevent mildew and fiber degradation.
There is no fixed service life — discard is based on condition, not age, as determined by a competent person.
Custom WLL, length, width and eye length.
Single to quadplex constructions and special plies.
Custom label printing, customer logos and color coding.
Sampling, OEM/ODM and low MOQ available.
Export packing (carton / wooden case / woven bag) and shipping marks as required.

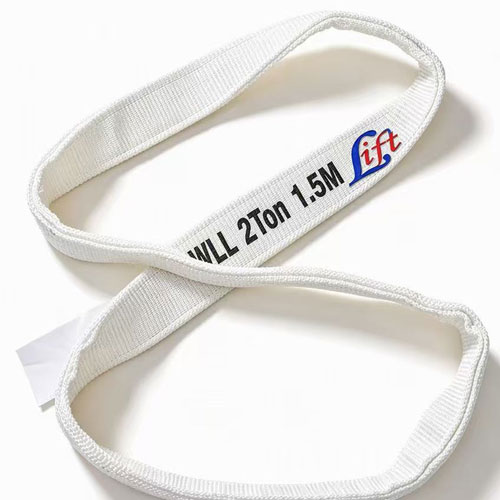

A webbing sling is a flat woven polyester band, usually with eye ends, providing a wider load-bearing surface for flat or sharp-edged loads. A round sling is an endless loop of polyester yarn core with a woven cover — softer and better for irregular loads. Choose by application and standard.
Yes, the flat profile distributes pressure over a wider area, but always use edge protectors or corner guards when lifting sharp-edged loads, and inspect the sling after every lift.
Every sling is supplied with a serial-numbered test certificate; CE marking and EN 10204 3.1 certificates are available. Third-party inspection (SGS / BV / TÜV) can be arranged on request.
Regular sizes support low MOQ and delivery in about 7–15 days; bulk or customized orders are subject to contract. Contact our sales team for exact terms.
Yes, China Lifute Sling Group exports worldwide with competitive wholesale pricing and fast global delivery. We welcome OEM/ODM projects.
