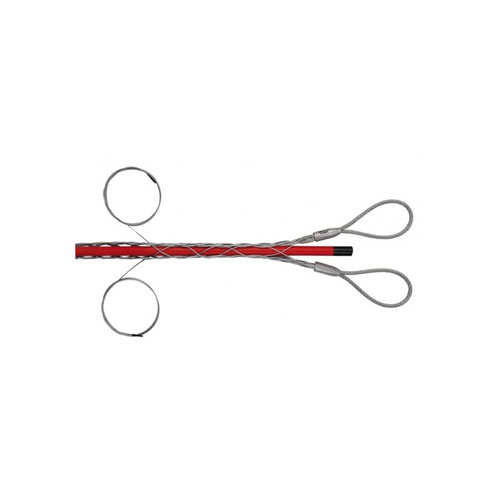

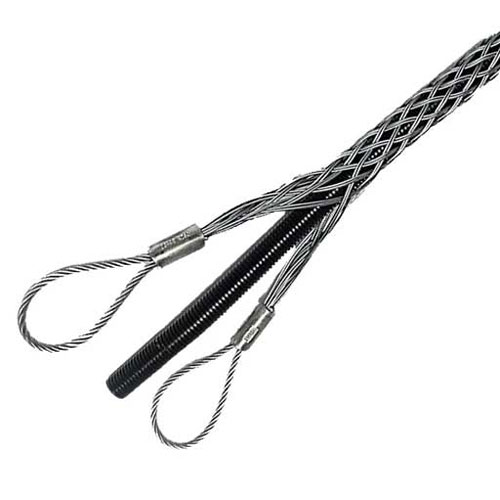

Wire Rope Sling

Double Eye cable socks

China Lifute Sling Group produce Double Eye cable socks,Double Eye Cable Pulling Sock,Heavy-Duty Double Eye Cable Pulling Grip. Double Eye Cable Socks are robust wire rope mesh sleeves designed to securely fasten, suspend, and drag heavy-duty cables, hoses, or chains. Crafted from high-carbon steel wire ropes with abrasion-resistant weaving technique, these socks provide exceptional tensile strength (up to 10-ton capacity) and durability in harsh environments.
Order online

China Lifute Sling Group produce Double Eye cable socks,Double Eye Cable Pulling Sock,Heavy-Duty Double Eye Cable Pulling Grip.

Double Eye Cable Socks: Heavy-Duty Wire Rope Mesh Solutions for Cable Management

Double Eye Cable Socks are engineered as the ultimate safety solution for cable suspension and traction applications. These reinforced wire rope mesh sleeves combine exceptional durability with precision engineering to securely manage heavy-duty cables in demanding industrial environments.

Key Features of Double Eye Cable Socks:

Dual-Eye Design

double-loop configuration provides superior load distribution, making these Double Eye Cable Socks ideal for both vertical suspension and horizontal traction systems. The reinforced eyelets withstand up to 10-ton tensile loads while maintaining cable alignment.

High-Tensile Construction

Each Double Eye Cable Socks is woven from ASTM A193 Grade B7 alloy steel wires, offering:

300% higher abrasion resistance vs standard nylon slings

Superior UV/weather resistance (-40°C to +150°C operating range)

Corrosion protection through zinc-phosphate coating

Application Versatility

Certified for use in:

Power transmission line maintenance

Subsea cable deployment systems

Mining equipment suspension

Offshore wind turbine installations

Railway catenary system upgrades

Safety Compliance

Meets/exceeds:

OSHA 29 CFR 1910.184

EN 1492-1:2000 sling standards

IEC 60839-4 marine specifications

Operational Advantages:

50% faster installation time compared to traditional clamping systems

Self-centering design prevents cable abrasion

Temperature-stable performance in extreme environments

Available in custom lengths (1.5m to 30m) and diameters (12mm to 150mm)

Industry Applications:

Energy Sector

Double Eye Cable Socks are the preferred choice for:

HVDC cable river crossings

Subsea power cable tensioning

Solar farm array stabilization

Construction & Mining

Superior cable management for:

Crane load stabilization

Conveyor system alignment

Ore transport cable suspension

Transportation Systems

Critical for:

Metro rail contact line maintenance

Overhead wire tension control

Ferry terminal cable management

Technical Specifications:

SUPPORT GRIPS
LACE UP/OPEN TYPE wire GRIPS
Type.	Range (mm)	Lattice Weave	Lattice Length (mm)	Overall Length (mm)	Approx. Break Load (kg)
Lftkswt09	6 - 13	Single	230	305	760
Lftkswt16	13 - 19	Single	355	430	1,015
Lftkswt22	19 - 25	Single	405	510	2,540
Lftkswt32	25 - 38	Single	455	610	2,722
Lftkswt44	38 - 50	Double	535	735	5,080
Lftkswt56	50 - 63	Double	610	865	5,080
Lftkswt76	63 - 89	Double	685	990	6,095
Lftkswt102	89 - 115	Double	685	990	7,110
Lftkswt127	115 - 140	Double	685	990	7,110
Lftkswt135	120 - 150	Triple	1,500	2,600	14,700
Lftkswt148	135 - 160	Double	1,000	1,600	17,000
Lftkswt176	161 - 190	Double	1,500	2,100	17,000
Lftkswt206	191 - 220	Double	1,500	2,100	17,000
Lftkswt225	200 - 250	Triple	2,280	2,732	32,000
Lftkswt236	221 - 250	Double	1,500	2,100	17,000
Lftkswt276	251 - 300	Double	2,000	2,700	17,000
