1. Product Overview

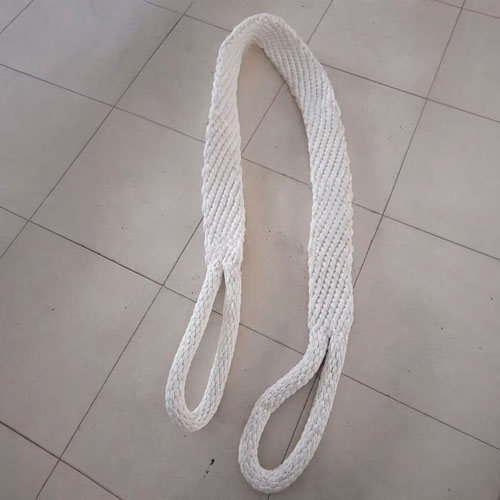

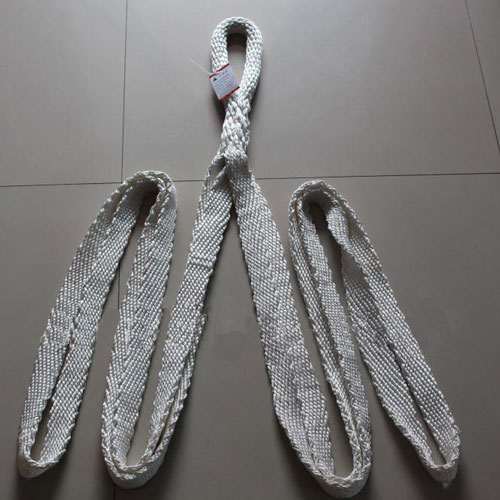

The white flat braided lifting sling is a flat-section synthetic sling braided from high-strength polyester (or polypropylene) yarns, with two soft eyes at both ends for quick hooking. The braided construction gives it a soft, flexible body with outstanding load conformity, while keeping the sling lightweight and easy to handle.

Designed for lifting heavy workpieces, it combines high strength with a non-marking surface: no dyes are used, and the smooth braided texture applies low surface pressure over a wide contact area, so the workpiece finish, paint and polished surfaces are fully protected from scratches, scuffs and marks during lifting.

Custom width from 25mm to 300mm, any length, single-ply or multi-ply, with OEM/ODM service supported.

2. Key Features & Benefits

Non-Marking & Paint-SafeDye-free white yarn and a smooth braided surface — nothing transfers onto the load, no scratches or scuffs on finish and paint.

Soft & FlexibleThe braided body conforms to the workpiece shape, spreading load pressure over a wide contact area.

LightweightMuch lighter than chain or wire rope at equal capacity, reducing rigger fatigue and handling cost.

High StrengthHigh-tenacity polyester yarns deliver a high strength-to-weight ratio with 7:1 safety factor.

Surface ProtectionIdeal for machined parts, painted assemblies, polished metal, glass and precision equipment.

Two Soft EyesDefined attachment points at both ends — hook directly onto crane hooks or connect to shackles.

CustomizableWidth, length, eye size, ply and printing all made to order to match your lifting plan.

Standard CompliantManufactured to EN 1492-1, ISO 4878, ASME B30.9 and JB/T 8521.1 with full traceability.

3. Construction

4. Technical Specifications

Note: values above are typical reference data for single-ply eye-and-eye slings; the actual product is subject to drawings/samples. White is the natural yarn color — WLL is identified by the sewn-in label; EN color coding is available on request. Multi-ply structures available for higher WLL.

General Parameters

5. Hitch Modes & Rated Load

Note: in multi-leg lifting, the load per leg increases as the sling angle increases. Always calculate per EN 1492-1 or contact our technical team to confirm a safe lifting plan.

6. Applications

• Heavy machined workpieces and precision parts

• Painted assemblies, coated panels and painted housings

• Polished metal sheets, stainless steel and aluminium profiles

• Glass, ceramics and fragile surface goods

• Machine tools, molds and dies

• Automotive and aerospace components

• Electrical equipment and enclosures

• General material handling where surface quality matters

7. Quality & Certifications

• Designed and manufactured to EN 1492-1 (Europe), ISO 4878 (international), ASME B30.9 (US) and JB/T 8521.1 (China braided sling safety standard).

• Incoming material inspection: batch tensile sampling of yarns, braid weight and abrasion tests.

• 100% final inspection: visual check, eye stitching verification, dimension measurement and fully traceable labels on every sling.

• Proof load tests at 1.5-2x WLL available with test certificates on request.

• Third-party inspection (SGS / BV / TUV) and certification documents (CE, ISO 9001) supported.

Note: certifications listed above are general; the final certificate package is subject to the documents provided by our factory.

8. Inspection & Maintenance

Pre-Use Inspection

• Check the label: WLL, width, batch number and validity must be legible and complete.

• Check the eyes for broken or pulled stitches, fraying or distortion — the eyes are the most stressed parts.

• Check the braided body for cut strands, abrasion, snags or exposed yarn damage.

• Check for heat damage (melting, hardening) or chemical attack.

• Confirm the sling is clean — contamination on the body could transfer onto the workpiece surface.

Discard Criteria (remove from service immediately if any occurs)

• Cut or broken load-bearing strands, or major body damage.

• Damaged eye stitching, torn eyes or deformed eye shape.

• Heat or chemical damage affecting strength.

• Missing or illegible label.

• After overload, shock loading or a lifting incident.

Usage & Storage

• Never knot the sling, drag it on the ground or exceed the rated WLL.

• Protect sharp edges with corner protectors or sleeves.

• Keep the sling clean to preserve its non-marking performance.

• Store in a dry place away from sunlight, chemicals and heat sources.

• Carry out periodic inspection and record keeping per EN/ASME standards.

9. Customization Services

• Custom width from 25mm to 300mm, and WLL above 30T on request.

• Flexible length, ply and protective sleeve options.

• Custom eye size and eye length to match your hooks or shackles.

• Custom printing and customer logos.

• Sampling, OEM/ODM and low MOQ available.

• Export packing (carton / wooden case / woven bag) and shipping marks as required.
