1. Product Overview

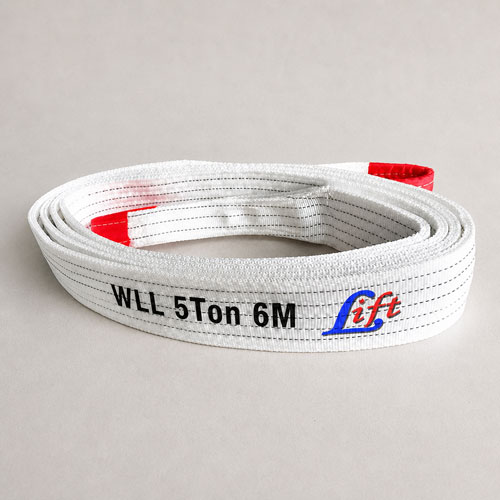

The flat eye to eye polyester web sling — also known as the eye and eye webbing sling or single ply flat eye & eye lifting sling — is a lightweight, versatile lifting tool made from high-tenacity polyester flat woven webbing, with a reinforced soft eye at each end for quick, secure attachment to hooks, shackles and rigging hardware.

The flat webbing design evenly distributes the weight of the load, reducing stress on lifting points and protecting the load from damage. Its single ply construction keeps the sling light and flexible, while its smooth, soft surface resists abrasion and friction and conforms to the shape of the load for maximum stability and load-bearing capacity.

Available in various lengths and color-coded load capacities, with 7:1 safety factor and full traceability on every sling. A 2-ply structure is available when a higher WLL is required at the same width.

2. Key Features & Benefits

Two Reinforced EyesSoft eyes at each end, formed by folding the webbing and secured with multiple rows of heavy-duty stitching for stable, secure hooking.

Single Ply & LightweightOne layer of flat woven webbing — easy to handle, store and rig, with a high strength-to-weight ratio.

Even Load DistributionFlat woven body spreads the load weight evenly, reducing stress on lifting points and the load.

Load ProtectionSmooth, soft surface protects the load from abrasion and friction during lifting.

Flexible & ConformingConforms to the shape of the load for maximum stability and load-bearing capacity.

High StrengthHigh-tenacity polyester yarns deliver reliable strength with 7:1 safety factor.

Color-Coded CapacityWLL color-coded per EN 1492-1 for instant, safe identification at the worksite.

Custom OptionsCustom length, width, ply, eye size, labels and logos; sampling and OEM/ODM with low MOQ.

3. Construction & Specifications

4. Technical Specifications

Note: values above are typical reference data for single ply flat webbing slings per EN 1492-1; the actual product is subject to drawings/samples. 2-ply structures provide higher WLL at the same width. Colors shown are the standard WLL color codes; undyed or custom colors are available on request.

General Parameters

5. Hitch Configurations & Load Factors

Flat eye to eye polyester web slings support three standard hitch configurations. Always apply the correct load factor when planning a lift.

WARNING: Always derate the WLL according to hitch type and angle. Choker angle must not exceed 120 deg. Never exceed the rated capacity.

6. Industries & Applications

• Construction — steel beams, precast panels, formwork and building material handling.

• Manufacturing — production line lifting, machine parts and heavy component transfer.

• Logistics & Warehousing — cargo handling, container loading and palletized goods.

• Precision & Painted Parts — polished, coated or painted surfaces where steel chains would cause damage.

• General Material Handling — pipes, bundles, coils and finished goods with surface protection.

• Shipbuilding & Assembly — component lifting during fabrication and assembly.

7. Quality & Certifications

• Designed and manufactured to EN 1492-1 (Europe), ISO 4878 (international) and ASME B30.9 (US).

• Incoming material inspection: webbing tensile sampling and stitching yarn strength tests.

• 100% final inspection: eye stitching verification, label check, dimension measurement and batch traceability.

• Proof load tests at 1.5-2x WLL available with test certificates on request.

• Third-party inspection (SGS / BV / TUV) and certification documents (CE, ISO 9001) supported.

Note: certifications listed above are general; the final certificate package is subject to the documents provided by our factory.

8. Inspection, Care & Service Life

8.1 Pre-Use Visual Inspection (Every Lift)

• Examine the full webbing length and both eyes for cuts, tears, abrasion or broken stitching.

• Check for chemical attack indicators — discoloration, stiffening or surface flaking.

• Inspect for heat or friction damage — melting, glazing, charring or fused fibers.

• Verify the identification label is present, legible and matches the intended load and hitch.

• Confirm the eye loops are not stretched, deformed or frayed — discard if the shape is distorted.

8.2 Periodic Examination & Storage

• A competent person must carry out a detailed inspection at least every 6 months (or more frequently in harsh environments), with written records maintained.

• Store flat or hung on sling racks, in a cool, dry, ventilated area away from sunlight and chemicals.

• Clean with mild soap and clean water only — never use chemical solvents or abrasive methods.

• Do not drag slings over rough surfaces or sharp edges; use edge protectors when necessary.

• There is no fixed service life — discard is based on condition, not age, as determined by a competent person.

9. Customization Services

• Custom length, width, ply and load capacities.

• Custom eye size and eye length to match your hooks or shackles.

• Custom label printing, customer logos and color coding.

• Sampling, OEM/ODM and low MOQ available.

• Export packing (carton / wooden case / woven bag) and shipping marks as required.
